HY-1093 Metal Wire Mesh Facade Cladding

Material: Stainless Steel
Warp Diameter: 1.5mm
Warp Pitch: 4mm

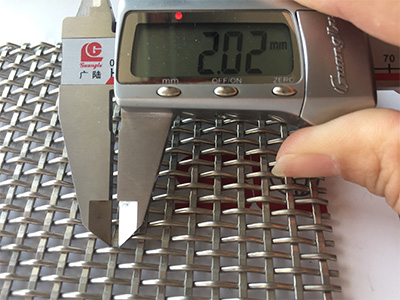

Weft Diameter: 2.0mm
Weft Pitch: 17.5mm
Weight:5.38kgs/m2
Opening Area: 58%
Mesh Thickness: 3mm
Surface Treatment: clean &free oil
Max Width: 3m
Max Length: 6m

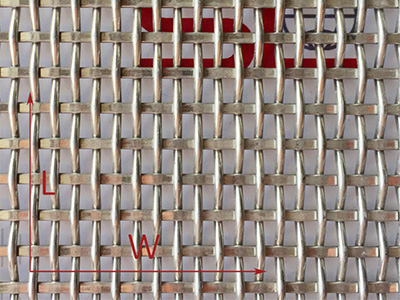

Metal Wire Mesh Facade Cladding-1

Metal Wire Mesh Facade Cladding-2

Metal Wire Mesh Facade Cladding-3
