HY-1096 Decorative Crimped Mesh

Material: Stainless steel
Warp Diameter: 3.5mm
Warp Pitch: 11.5mm
Weft Diameter: 2.75mm
Weft Pitch: 19.75mm
Weight: 5.5kgs/㎡
Opening Area: 77%
Mesh Thickness: 6.6mm
Surface Treatment: clean &free oil
Max Width: 4m
Max Length: 12m

Decorative Crimped Mesh-1

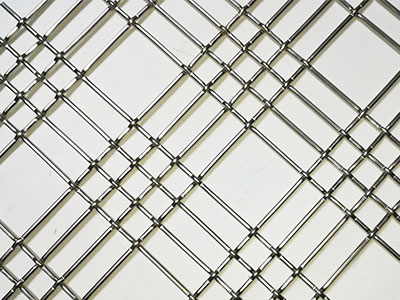

Decorative Crimped Mesh-2

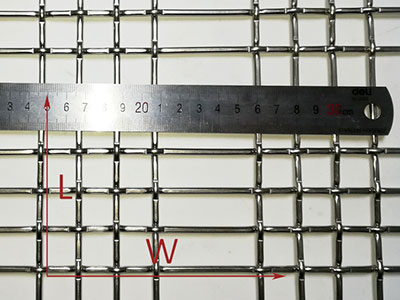

Decorative Crimped Mesh-3

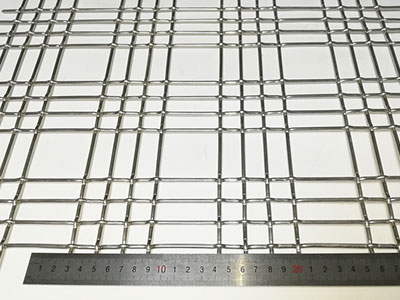

Decorative Crimped Mesh-4

Decorative Crimped Mesh-5
