HY-1051 Crimped Mesh Exterior Building Metal Facade

Material: Stainless Steel
Warp Diameter: 2mm
Warp Pitch: 12mm
Weft Diameter: 2.5mm
Weft Pitch: 22.5mm
Weight:3.88kgs/m2
Opening Area: 74%
Mesh Thickness: 7mm
Surface Treatment: clean &free oil
Max Width: 4m
Max Length: 36m

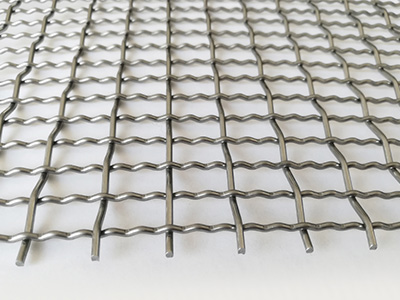

Crimped Mesh Exterior Building Metal Facade-1

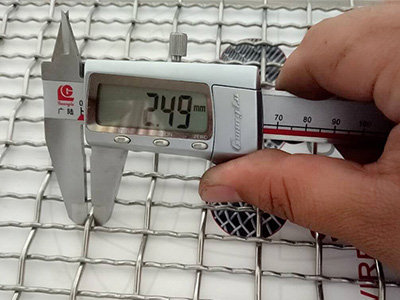

Crimped Mesh Exterior Building Metal Facade-2

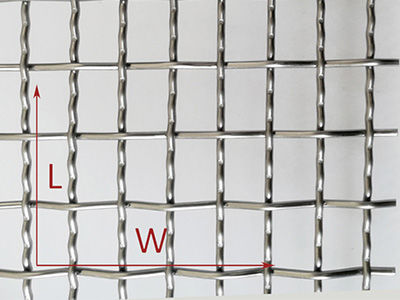

Crimped Mesh Exterior Building Metal Facade-3

Crimped Mesh Exterior Building Metal Facade-4
